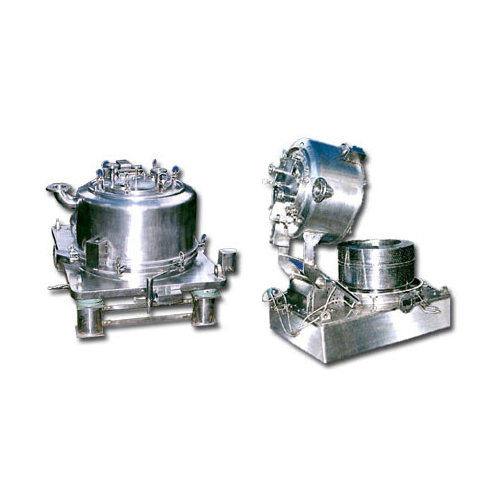

Centrifuge Machine

Get a Price/Quote

MOQ : 1 Number

Centrifuge Machine Specification

Usage
Solid Liquid Separation in Plant

Material
M.S.,S.S 304/316,RL, Halar Lined, PTFE Lined, Tefzol Lined

Product Type
Four Point Suspended In GMP And Non-GMP Type

Warranty
Yes

Centrifuge Machine Trade Information

Minimum Order Quantity
1 Number

Payment Terms
Cash in Advance (CID)

Supply Ability
10 Per Month

Delivery Time
15-30 Days

Main Domestic Market
All India

About Centrifuge Machine

Manual Top Discharge Full Body Opening Type Centrifuge Machine are versatile and reliable solid-liquid separation devices designed for use in pharmaceutical, food, and chemical industries. They feature a simple manual top discharge mechanism that allows for easy removal of solids. These centrifuges are constructed with stainless steel and can operate at speeds up to 1200 RPM. They are available in various capacities, ranging from 300-350 kg. Key benefits include a straightforward design, reduced solid loss during processing, and suitability for a wide range of applications.

Special properties for the benefit of the customer

Flexible adaptation for difficult to filter products.
Lossless filter cake discharge in filtrate.
Gentle solids discharge with the protection of crystal structure.
Automatic CIP cleaning.
Easy accessibility of all machinery parts in contact with the product.
Excellent washing and extraction effect.
Simple centrifuge design and operation.

Additional Feature

Full Body Opening for excellent accessibility for cleaning and maintenance.
Cleaning in Place.
Full Lid opening for accessibility for cleaning and maintenance.
cGMP Construction.
Vibration Tripper.
Cake Thickness Monitoring System.
Zero Speed Interlocking.

Specification

Model	Basket Dia	Basket Height	Basket Speed	Filtration Area	Centrifugal Force	Working Capacity Under Lip	Maximum Basket Load	Motor Power
Units	mm	mm	rpm	m2	G	ltr.	Kgs.	Hp
CFI 24	610	305	1450	0.5	720	45	50	3
CFI 36	915	510	1000	1.32	510	200	230	7.5
CFI 48	1220	510	900	1.76	555	310	370	15
CFI 48-H	1220	610	900	2.15	555	380	440	15

Versatile Material Selection for Diverse Applications

The centrifuge is available in various material options like mild steel (M.S.), stainless steel (S.S. 304/316), RL, Halar, PTFE, and Tefzol linings. This range ensures chemical compatibility and high performance in diverse industrial environments, making the machine suitable for different types of solids and liquids encountered in plant operations.

Efficient Solid-Liquid Separation Process

Designed for manual top discharge and full body opening, this centrifuge facilitates easy loading, unloading, and maintenance. Its robust construction supports effective solid-liquid separation, minimizing moisture content and increasing yields, which is especially important for process industries requiring precise separation results.

Reliable Supply and Support Across India

As a leading distributor, exporter, fabricator, importer, manufacturer, producer, supplier, and trader, we provide comprehensive support and nationwide delivery throughout India. Our after-sales service, combined with warranty options, reassures customers of long-term operational efficiency and responsive assistance.

FAQ's of Manual Top Discharge Full Body Opening Type Centrifuge Machine:

Q: How does the manual top discharge centrifuge machine work for solid-liquid separation?

A: The centrifuge operates by rapidly spinning a mixture of solids and liquids, enabling the denser solids to settle against the drum's wall while the liquid phase is separated and discharged. The manual top discharge feature allows operators to easily remove the solid cake at the end of each cycle.

Q: What materials can the centrifuge machine be constructed from, and how do I choose the right one?

A: Our centrifuge machines are available in M.S., S.S. 304/316, RL, Halar Lined, PTFE Lined, and Tefzol Lined options. The material should be selected based on the chemical compatibility and the physical properties of the substances processed to ensure corrosion resistance and durability.

Q: When is it beneficial to use a full body opening type centrifuge in plant operations?

A: A full body opening design is beneficial when frequent cleaning, inspection, or replacement of parts is required. It saves maintenance time and ensures thorough access, which is critical in industries where hygiene or rapid changeover between batches is important.

Q: Where can I obtain support and installation for this centrifuge machine within India?

A: Our company offers full support including supply, installation, and after-sales service across India. As a distributor, exporter, fabricator, importer, manufacturer, producer, supplier, and trader, we ensure timely delivery and prompt customer service nationwide.

Q: What is the process for operating and maintaining the manual top discharge centrifuge?

A: Operators load the mixture from the top, start the centrifuge to separate solids from liquids, then manually open the top for cake discharge. Routine maintenance includes cleaning the bowl, inspecting seals and bearings, and timely replacement of worn parts as per the manual.

Q: What are the primary benefits of using this centrifuge machine for solid-liquid separation?

A: Key benefits include high separation efficiency, compatibility with a wide range of materials, straightforward operation, and easy maintenance. The full body opening design reduces downtime and supports safe, effective handling of process materials in industrial environments.
